VFR Auxiliary Power Block

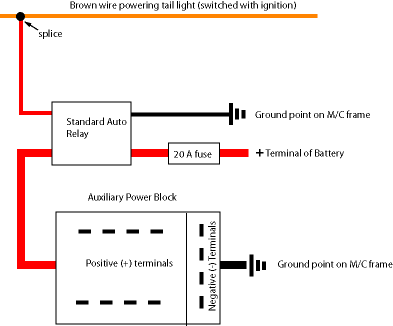

Here is the auxiliary power block I installed on my '94 VFR. I got the power block from a marine supply store. It is wired with a relay that is activated when the bike is running. This is a relatively simple setup added to a lot of bikes which I highly recommend. The relay is a common automotive relay available at any auto parts store or Radio Shack. Here is how I wired it:

Here is a picture of the installation. (Colors may not match). I used 18 gauge automotive wire for the relay power switch, and heavier wire (I think 10 gauge) for the power supply to the auxiliary block.
